Plastic Cup Mould: Precision Tooling for High-Speed Production

Plastic cups are everywhere. Coffee shops. Fast food restaurants. Office water coolers. They are thin, light, and cheap. A plastic cup mould makes this possible. The mould shapes molten plastic into a cup in seconds. The walls are thin. The production is fast. Here is what buyers need to know.

What a Plastic Cup Mould Does

The mould forms the cup in one shot

A plastic cup mould is a steel tool that fits into an injection molding machine. Molten plastic shoots into the mould at high speed. The cavity fills in a fraction of a second. The plastic cools. The mould opens. The cup drops out. The cycle takes 3 to 5 seconds.

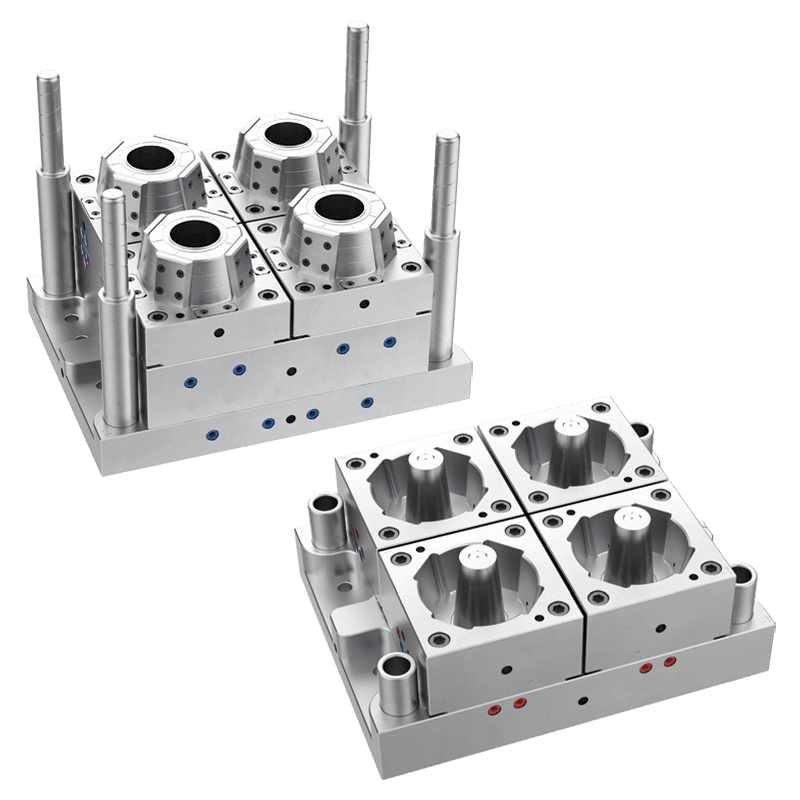

The mould has multiple cavities. A small mould has 4 cavities. A large mould has 16 or 24. Each cavity makes one cup. More cavities means more cups per cycle. More cups per hour.

The walls are thin, so cooling must be fast

Plastic shrinks as it cools. Thin walls cool fast. Thick areas cool slow. A plastic cup mould needs cooling channels close to the cavity surface. Water runs through the channels. It pulls heat out of the plastic. The cup solidifies quickly. The cycle time stays low.

If cooling is uneven, the cup warps. The rim is not round. The base is not flat. The cup does not stack. It does not seal with a lid.

Types of Plastic Cups and Their Moulds

Disposable drinking cups

These are the common. Thin walls. Lightweight. A plastic cup mould for disposable cups has high cavitation. 16 to 48 cavities. The mould runs fast. The cups are cheap.

Yogurt and pudding cups

These cups are thicker. They have a rim for a foil seal. A plastic cup mould for yogurt cups has features for the sealing rim. The rim must be flat. The foil seals tightly.

Coffee cups

Coffee cups are insulated. They have a ribbed or textured surface. A plastic cup mould for coffee cups has a textured cavity. The texture is part of the mould surface.

What to Look for in a Plastic Cup Mould

Cavity count

More cavities mean higher output. A plastic cup mould with 16 cavities produces four times as many cups as a 4-cavity mould. The mould costs more. The machine needs more clamping force. The output per hour is higher.

Here is what cavity count does:

• 4 cavities — low output, lower cost
• 8 cavities — moderate output, medium cost
• 16 cavities — high output, higher cost
• 24 cavities — very high output, expensive

Steel quality

The mould runs millions of cycles. The steel must not wear. The cavity surface must stay smooth. A plastic cup mould with hardened steel lasts longer. The cups come out clear. The surface is glossy.

Soft steel wears out. The cups become cloudy. The mould is scrap.

Cooling channel design

Faster cooling means faster cycles. A plastic cup mould with conformal cooling channels cools evenly. The channels follow the shape of the cup. Heat is pulled out evenly. Cycle time drops.

Here is what cooling design does:

• Straight drilled channels — standard, works, uneven cooling possible
• Conformal cooling — faster cycle, even cooling, higher mould cost
• Poor cooling — long cycles, warped cups

Gate design

The gate is where plastic enters the cavity. The gate leaves a mark. A plastic cup mould should have a gate on the bottom or the side. The mark is hidden. The cup looks clean.

Common Questions About Plastic Cup Moulds

How long does a plastic cup mould last?

A well-made plastic cup mould with hardened steel lasts for millions of cycles. 5 million to 10 million cycles is common. Some moulds last 20 million cycles with proper maintenance.

How many cavities should I choose?

Match the cavity count to your production volume. A 4-cavity mould produces about 3,000 cups per hour. A 16-cavity mould produces about 12,000 cups per hour. The right choice depends on your demand.

What material is ideal for the cups?

Polypropylene (PP) is the common. It is food safe. It is flexible. It handles hot and cold. Polystyrene (PS) is cheaper. It is brittle. It is for cold drinks only. PET is clear. It is for cold beverages and deli containers.

How much does a plastic cup mould cost?

The cost depends on cavity count, steel quality, and cooling design. A 4-cavity mould might cost $5,000 to $10,000. A 16-cavity mould might cost $20,000 to $40,000. A 24-cavity mould with conformal cooling might cost $50,000 or more.

Why choose a quality plastic cup mould?

A quality mould runs faster. It produces more cups per hour. The cups are consistent. The surface is smooth. The mould lasts for years. A cheap mould runs slow. It produces defective cups. It wears out quickly. Not worth the savings.

A plastic cup mould is an investment. A good mould pays for itself quickly. It runs fast. It makes good cups. It lasts for years. Choose the right cavity count. Choose quality steel. Choose good cooling. Your production will run smoothly. Your cups will be consistent. Your customers will be happy. That is the goal of a plastic cup mould. High-speed production of quality cups. A good mould does that. A bad one does not.
